70% Efficiency 10 Inch 16.5l/s Portable Clean Water Submersible Borehole Pump
10 inch 16.5l/s 200m portable submersible borehole pump electrical power was delivered to Ethiopia. He requested: a potable water from borehole. Since the casing diameter is 14 inch, the pump diameter should be less than 12 inch, Discharge is 50L/S and Head is 350 meter. Borehole submersible pump is uses electrical power. Also, I need a curve and technical specifications of 20l/s,220m and 16.5l/s, 240m stain less submersible pump including cost. The casing for 20l/s is 10 inch already installed and for 16.5l/s 14 inch casing it is also installed.
According to Ethiopia customer's requirement, we quote stainless steel 304 submersible pump price and stainless steel 316 submersible pump type price. However, in order to reduce cost, We've changed the pump materials from SS316 to SS304, actually if the pumps are not for sea water use, 304 stainless steel is strong enough. No need to use 316 stainless steel material.
Specifications of water submersible pump:
1. IP Class: IP68
2. Insulation class: F
3. Motor working: S1

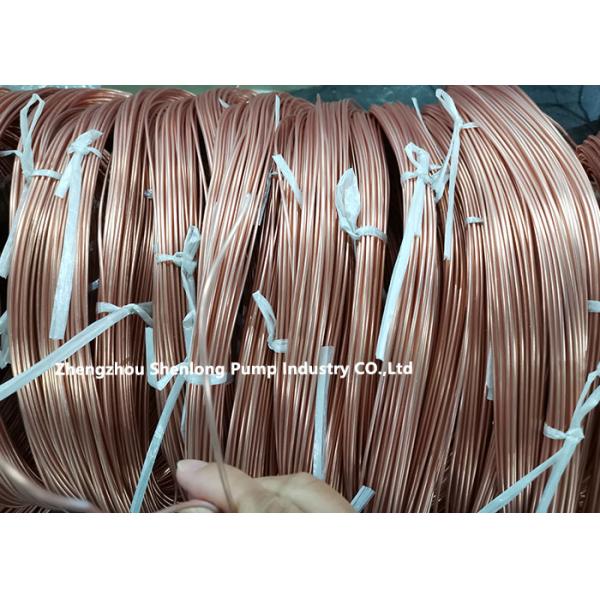

4. Winding type: re-winding, double later insulation wire PE2+PA
5. Cable: 10m standard
6. Cooling method: water cooling
7. Medium: less than 50 degree clean water
Features of submersible water pump:
1. good performance
2. safety and reliable operation
3. nice appearance
4. highly energy-saving can be maintained very conveniently
5. low noise, little vibration light weight and simple construction
Please Note for submersible water pump:
1. Motor cavity MUST BE fill with clean water when pump working
2. DO NOT use the cable as sling when install, should wear ropes on the handle
3. The first stage impeller should go down the water level
4. After shut down the power, should wait for more than 3mins when restart the pump
5. When the pump finish work, it's better to cut off the power
6. We have video if you don't know how to do. E-mail or Message to Whatsapp, please.
75hp 55kw water submersible pump types:
(Notice: flow rate, head meters, materials, and other specifications, all could be ODM OEM.)
| Pump Diameter | Model | Power | Flow range | Head range | Outlet Diameter |
| Inch(") | QJ type | kw | hp | m3/h | m | 3" |
| 10" | 250QJ50-220/11 | 55 | 75 | 50 | 220 | 3" |
| 10" | 250QJ50-240/12 | 55 | 75 | 50 | 240 | 3" |
| 10" | 250QJ63-200/10 | 55 | 75 | 63 | 200 | 4" |
| 10" | 250QJ80-140/7 | 55 | 75 | 80 | 140 | 4" |
| 10" | 250QJ80-160/8 | 55 | 75 | 80 | 160 | 4" |
| 10" | 250QJ100-126/7 | 55 | 75 | 100 | 126 | 5" |
| 10" | 250QJ125-96/6 | 55 | 75 | 125 | 96 | 5" |
| 10" | 250QJ140-90/6 | 55 | 75 | 140 | 90 | 5" |
| 10" | 250QJ160-75/5 | 55 | 75 | 160 | 75 | 5" |
| 12" | 300QJ200-60/3 | 55 | 75 | 200 | 60 | 6" |
| 12" | 300QJ300-40/2 | 55 | 75 | 300 | 40 | 6" |
Water submersible pump package:
Submersible motor and submersible head is packed separately by air freight. All submersible pump is packed with seaworthy export standard plywood case.
Why choose us?
1. Specialized production Manufacturer for Submersible Pump
2. Focus on technological innovation, Over Industry leading level
3. Good experience at Domestic and oversea market
4. Carefully paint for Good appearance
5. Years of International service standards, Engineer one-to-one service
FAQ
Q:How to customize pumps and mechanical seals ?
A:Customers could send us application data or drawings , we will select suitable pump and seal .
Q:How long is warranty?
A:About 24 months.
Q:How long is production lead time?
A:Depends on quantity, the normal small amount production is about 10 days.
Q:What’s type of shipping?
A:Usually by sea, and will be based on the customer's destination to choose the most favorable most appropriate way
Q:What is the shipping terms you can provide?
A:Depends on customer's requirements, we can provide different transportation terms,
such as EXW, FOB, CIF.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 50% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight.
