QSZ submersible axial flow pump applications:
1. Farmland irrigation, spray irrigation
2. Water supply for industrial or residential buildings
3. Water distribution in mountain areas
4. Low-lying areas and dunes
5. Water supply and drainage for mines in urban or rural districts
6. Flood protection and drainage
7. Sewage water treatment
Axial flow water submersible pump models:
| Discharge Dia | Model | Flow range | Head range | Power |
| mm | QSZ type | m3/h | m | kw |
| 200 | QSZ300-6-10 | 300 | 6 | 10 |
| 250 | QSZ500-5-13 | 500 | 5 | 13 |
| 350 | QSZ800-3-13 | 800 | 3 | 13 |
| 400 | QSZ1000-3-18.5 | 1000 | 3 | 18.5 |
| 350 | QSZ1100-10-45 | 1100 | 10 | 45 |
| 500 | QSZ1500-4-22 | 1500 | 4 | 22 |
| 500 | QSZ1250-5-30 | 1250 | 5 | 30 |
| 550 | QSZ1600-4-30 | 600 | 4 | 30 |
| 550 | QSZ2100-3-30 | 2100 | 3 | 30 |
| 550 | QSZ1600-5-37 | 1600 | 5 | 37 |
| 550 | QSZ2000-4-37 | 2000 | 4 | 37 |
| 650 | QSZ2500-3-37 | 2500 | 3 | 37 |
| 550 | QSZ1900-5-45 | 1900 | 5 | 45 |
| 650 | QSZ2400-4-45 | 2400 | 4 | 45 |
| 750 | QSZ3000-3-45 | 3000 | 3 | 45 |
| 500 | QSZ1800-10-75 | 1800 | 10 | 75 |
QSZ submersible axial flow pump features:
1. Axial/ Mixed Flow Submersible Pump various installation methods–horizontal, vertical, tilting.
2. Pump and motor share the same shaft,improving rotor concentricity, less damage to shaft when pump working.
3. The impeller angle is adjustable, highly improve the flow adjusted range.
4. The motor is sealed three times, ensuring that there is no water leakage.
QSZ submersible axial flow pump overview:
QSZ submersible axial flow pump working conditions:
1. Three-phase power source, voltage 380V (deviation no more than 5%), frequency 50Hz (deviation no more than 1%).
2. Pump motor must be filled with clear water.
3. The temperature of the water being pumped shall not be more than 40°C.
4. PH value of the water being pumped shall be 5.5~8.5
Product Tags:
|
|

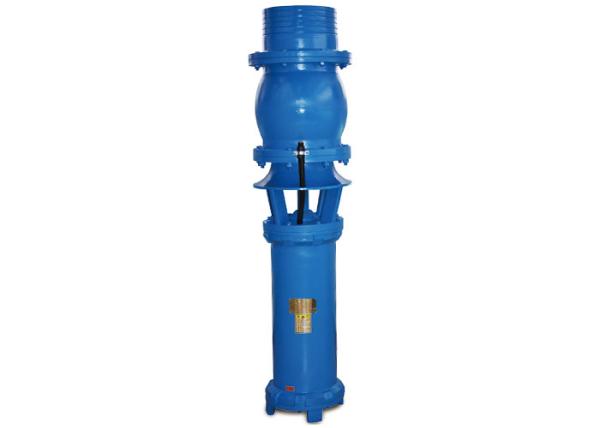

Large Cpacity 800m3/h 1800m3/h 10m Water Submersible Axial Flow Pump Images
|
